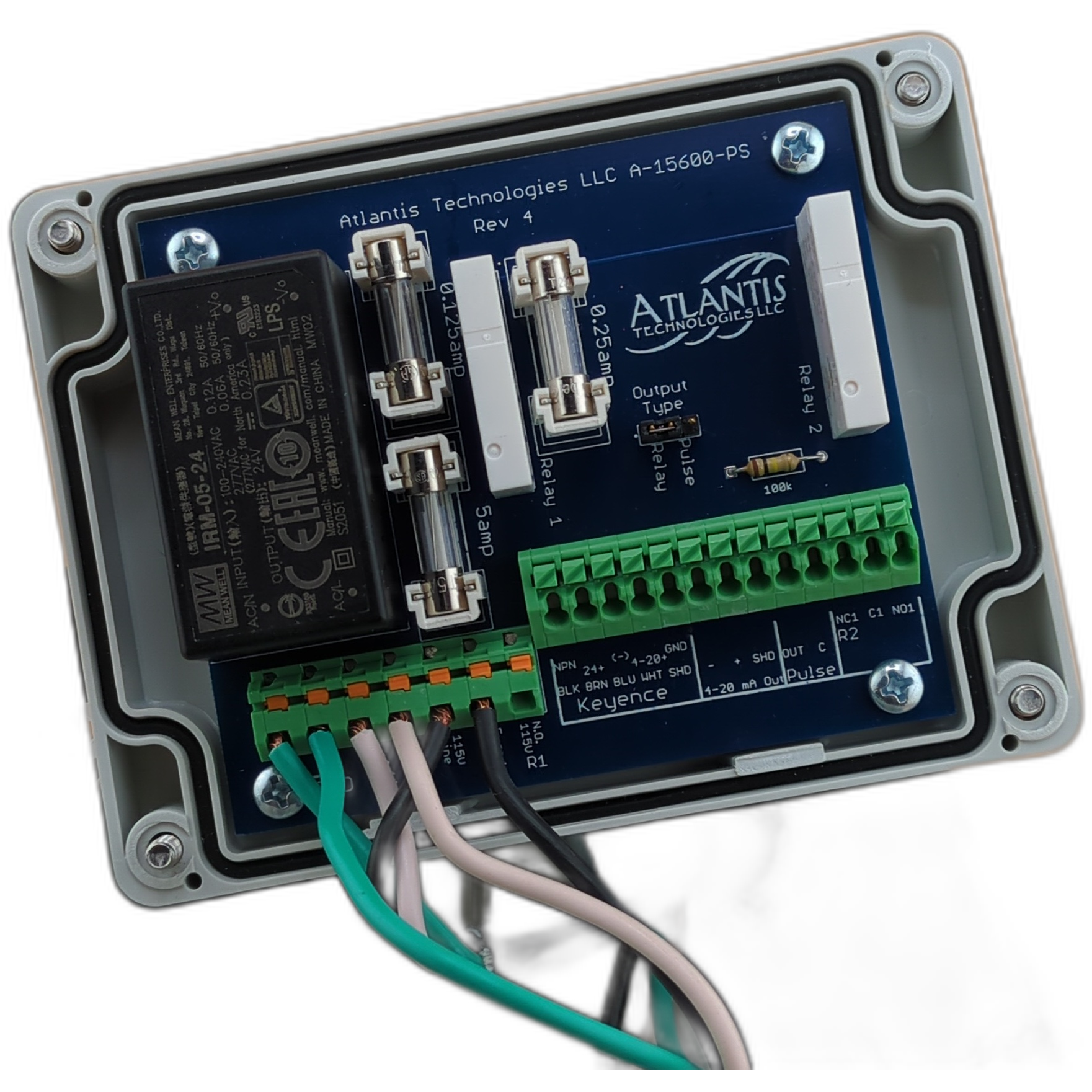

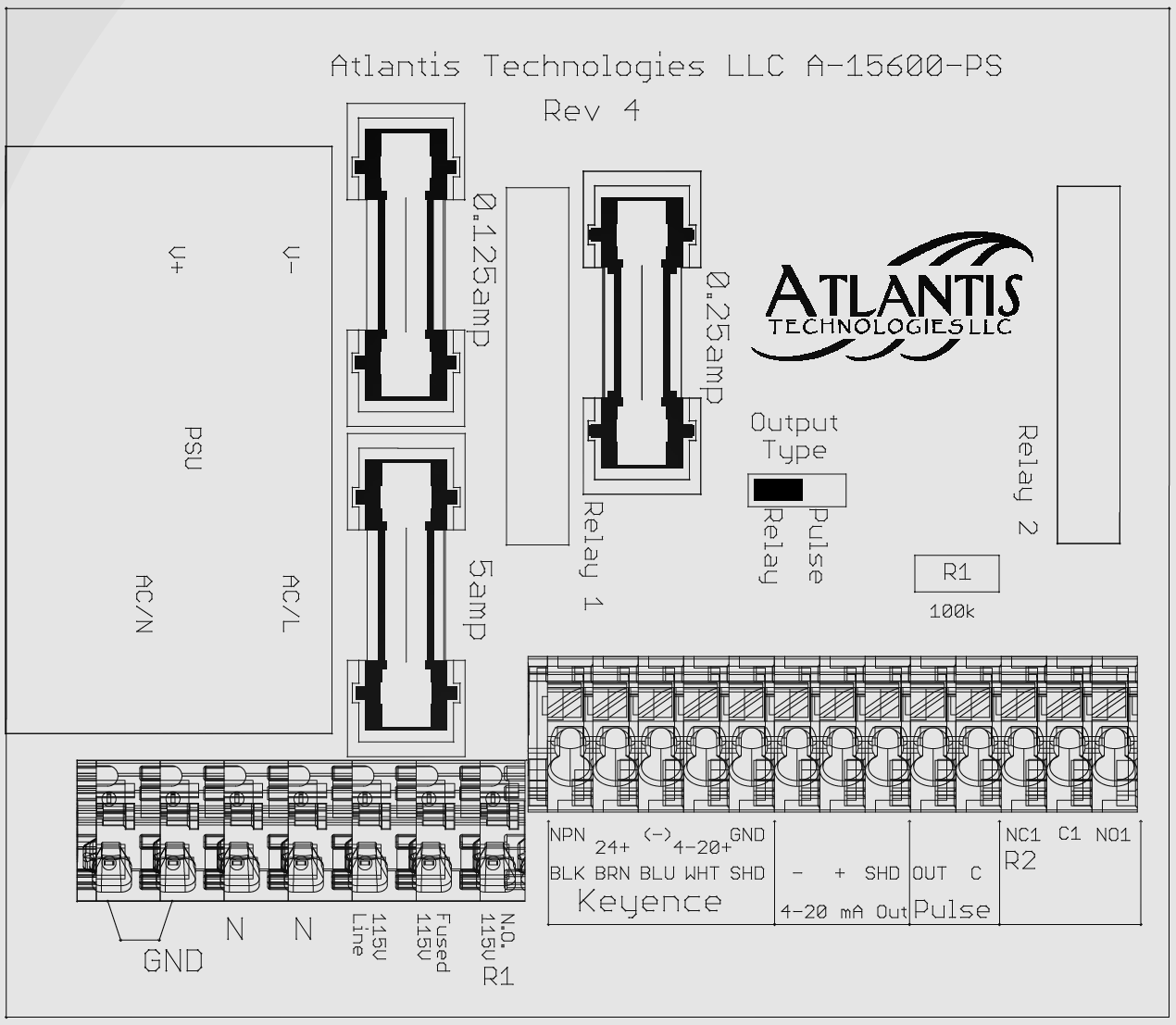

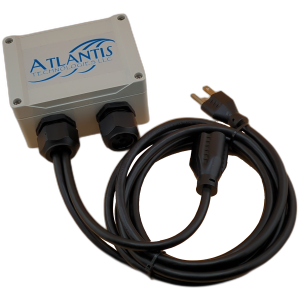

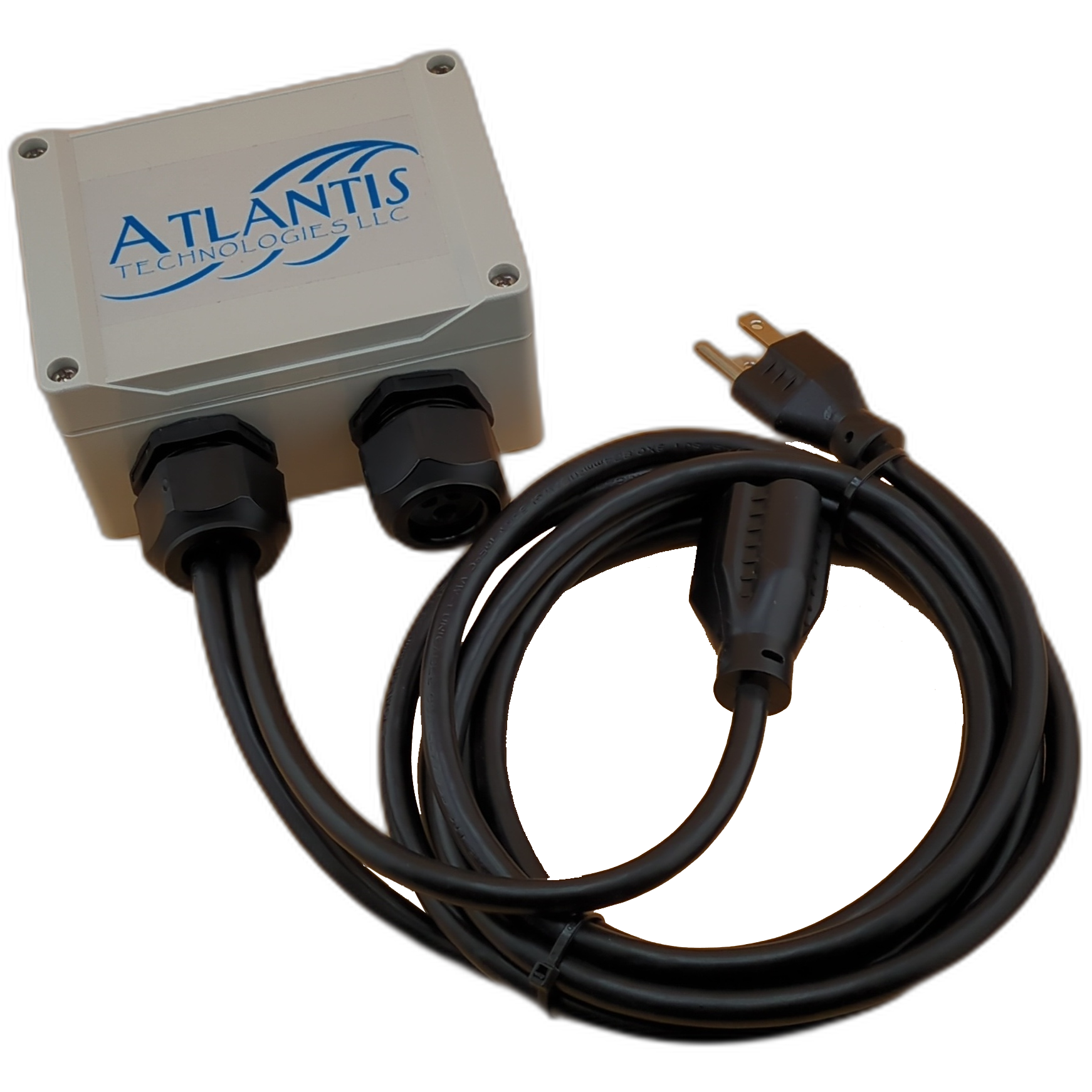

The Atlantis Power Supply has been specifically designed to be the interface between a Keyence Ultrasonic Clamp-On Flow Meter and a Walchem I6 or I9 controller or directly to various chemical metering pumps. The board can also be used for various other sensors where 24VDC power is required. The selectable Relay or Pulse output mode allows the device to operate as a flow switch or a pulse output flow meter. The 4-20mA output of the sensor is also passed through to output terminals for easy connection to a controller or pump.
Brochure
Manual
Electrical Drawings for Pump Connections
Electrical Drawing for W600 Pulse Input
